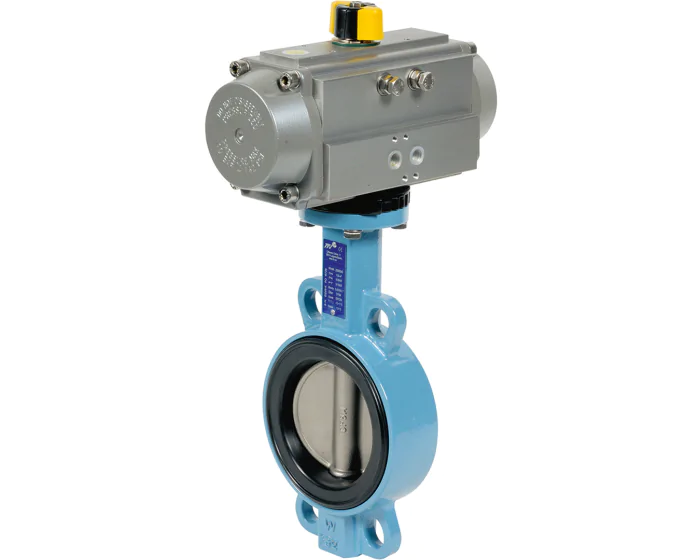

The 1150 LT10 butterfly valve has a ductile iron body, a stainless steel or ductile iron disc and an ACS EPDM seat. It is actuated with an ALPHAIR pneumatic actuator. ACS approval. PS : 10 bar - TS : -20/+110°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | 32 - 40 |
| Seat | EPDM |
| Body material | Ductile iron |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 10 |
| Connections | Between flanges PN10/16 #150 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| ATEX zone | 1. 21. 2. 22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting 32 - 40 | 260303017006RL10 | S1001750 |
€201.56
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 Spring return | 260303017107RL10 | S1001751 |
€250.36
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Double acting | 260304017006RL10 | S1001752 |
€214.29
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Spring return | 260304017107RL10 | S1001753 |
€250.36
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Double acting | 260305017007RL10 | S1001754 |
€230.19
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Spring return | 260305017108RL10 | S1001755 |
€309.76
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Double acting | 260306017007RL10 | S1001756 |
€240.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Spring return | 260306017108RL10 | S1001757 |
€319.30
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Double acting | 260307017008RL10 | S1001758 |
€292.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Spring return | 260307017109RL10 | S1001759 |
€380.83
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Double acting | 260308017008RL10 | S1001760 |
€319.30
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Spring return | 260308017110RL10 | S1001761 |
€479.49
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Double acting | 260309017009RL10 | S1001762 |
€382.96
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Spring return | 260309017111RL10 | S1001763 |
€634.36
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Double acting | 260310017010RL10 | S1001764 |
€510.24
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Spring return | 260310017112RL10 | S1001765 |
€753.17
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting DN250 - 10'' | 260311017011RL10 | S1001766 |
€799.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Spring return DN250 - 10'' | 260311017113RL10 | S1001767 |
€1,154.36
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting DN300 - 12'' | 260312017012RL10 | S1001768 |
€983.36
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Spring return DN300 - 12'' | 260312017115RL10 | S1001769 |
€2,206.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting DN350 - 14'' | 260313017014RL10 | S1001770 |
€1,804.41
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Spring return DN350 - 14'' | 260313017116RL10 | S1001771 |
€2,598.96
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting DN400 - 16'' | 260314017016RL10 | S1001772 |
€2,244.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Spring return DN400 - 16'' | 260314017117RL10 | S1001773 |
€5,616.11
(excl. btw)
|
add to cart |
